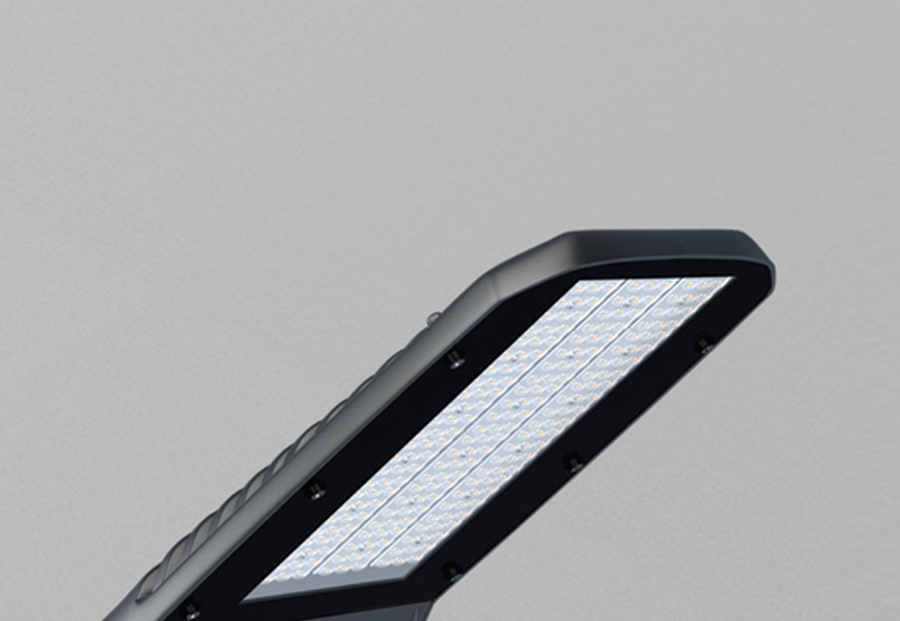

CADIA

Road and Street Luminaires

– ENEC certified driver
– PF>0.95
– 2 years warranty
– Aluminum body
– +120 llm/W efficiency
– With high efficiency factor and affordable price, it has the fastest payback period.



SKU: 435c5a2663f2-1-1-1-1-1-1-1-1-1-1-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-3-1-1-1-2-1-1-1-1-1-1-1-1-1-1 Category: Tags: , , , , , ,

Product Code
Ürün Kodu		 Power
Güç (W)		 Color Temp.
Işık Rengi (K)		 Lum. Out.
Işık Akısı (≥lm)		 LumenEff.
Verimlilik (lm/W)		 Fixture Dimensions
Armatür Ölçüleri (mm)
a / b / h		 Weight
Ağırlık (kg)		 Pack. Qty
Ambalaj Adedi
GSA 1160CL SG30 60W SMD LED 3000K 7200 >120 182 436 98 – 1
GSA 1160CL SG40 60W SMD LED 4000K 7200 >120 182 436 98 – 1
GSA 1160CL SG60 60W SMD LED 6500K 7200 >120 182 436 98 – 1
GSA 1210CL SG30 100W SMD LED 3000K 12000 >120 282 516 76 – 1
GSA 1210CL SG40 100W SMD LED 4000K 12000 >120 282 516 76 – 1
GSA 1210CL SG60 100W SMD LED 6500K 12000 >120 282 516 76 – 1
GSA 1213CL SG30 130W SMD LED 3000K 15600 >120 282 516 76 – 1
GSA 1213CL SG40 130W SMD LED 4000K 15600 >120 282 516 76 – 1
GSA 1213CL SG60 130W SMD LED 6500K 15600 >120 282 516 76 – 1
GSA 1315CL SG30 150W SMD LED 3000K 18000 >120 309 744 105 – 1
GSA 1315CL SG40 150W SMD LED 4000K 18000 >120 309 744 105 – 1
GSA 1315CL SG60 150W SMD LED 6500K 18000 >120 309 744 105 – 1
GSA 1318CL SG30 180W SMD LED 3000K 21600 >120 309 744 105 – 1
GSA 1318CL SG40 180W SMD LED 4000K 21600 >120 309 744 105 – 1
GSA 1318CL SG60 180W SMD LED 6500K 21600 >120 309 744 105 – 1

.

Body Aluminum
IP Rating IP66
IK Rating IK09
Flame Protection 650°C
Cable Gland PG7
Cable 3x1mm²
Ral Code 9006
Mounting Type Direk



Light Source Mid Power Led
Reflector –
Lens PC, PMMA
Diffuser Temperli Cam
Color Rendering Index (CRI) >80
Color Temperature 3000K / 4000K / 6500K
Photobiological Risk RG1
Beam Angle 70° x 150°
Input Voltage 220-240V AC
Frequency 50-60Hz
Class I
System Lifetime >62.000h
Power Factor >0,95
Operating Temperature -20°C / +45°C
Standards EN60598-2-3,EN62262,EN60529,
LM79,LM80
DALI ✓
Emergency Kit ✓
Step DIM  ✓
2 Hours Emergency Kit –
3 Hours Emergency Kit –
Elektriksel Sınıf –
Radar Sensor –

.
